10 To 120 Mesh Multi-Funcion Spice Grinder Cassia Bark Pulverizer Mill
BS series small hammer crusher is suitable for pharmaceutical, chemical, food and other industries. It is a very good powder processing equipment. It is not limited by material hardness, softness and fiber viscosity, and can have a good crushing effect on any material.
All parts in contact with crushed materials are made of stainless steel, which has good corrosion resistance and meets the requirements of GMP. Advantages: simple structure, strong and durable, stable operation and convenient maintenance. It has good crushing effect on leaves and medicinal materials.
Technical data:
| Model | BS-180 | BS-250 | BS-300 | BS-350 |
| Feed size(mm) | <10mm(granule) <15*40*2(leaf) | <10mm(granule) <15*40*2(leaf) | <10mm(granule) <15*40*2(leaf) | <10mm(granule) <15*40*2(leaf) |
| Grind fineness(mesh) | 10-120 | 10-120 | 10-120 | 10-120 |
| Capacity(kg/h) | 3-50 | 10-100 | 20-200 | 30-300 |
| Grind chamber diameter(mm) | 200 | 270 | 330 | 380 |
| Rotor speed(rpm) | 5900/8600 | 4200/6200 | 2600/5100 | 2200/4400 |
| Motor(kw) | 2.2 | 5.5 | 7.5 | 11 |
| Overall size(L*W*H)(mm) | 840*470*1020 | 930*600*1200 | 1000*650*1500 | 1150*700*1600 |
| Weight(kg) | 112 | 210 | 296 | 430 |
Working method:
The machine is composed of frame, crushing chamber and feeding part. A movable cutter head is arranged on the main shaft, a fixed ring tooth is arranged in the crushing cavity, and a screen Mesh is arranged under the ring tooth. When the spindle rotates at high speed, the movable cutter head rotates, and the material is impacted and rubbed between the fixed ring teeth and the Movable Hammer. Under the combined action of Shearing, shearing and impact between materials, crushing is realized. The machine structure is simple, durable, stable operation, crushing effect is obvious, convenient maintenance. The crushed material can be discharged directly from the crushing chamber of the main machine, and the particle size can be obtained by changing the screen mesh with different pore sizes. (The speed can also be adjusted to obtain the fineness of the finished product.)
Main features:
1. Wide Range of application, large processing capacity.
2. A compact structure; a stable operation.
3. The material lapping process is fast and reliable, and the lapping degree is adjustable.
4. The surface of multi-function grinder is clean and easy to clean.

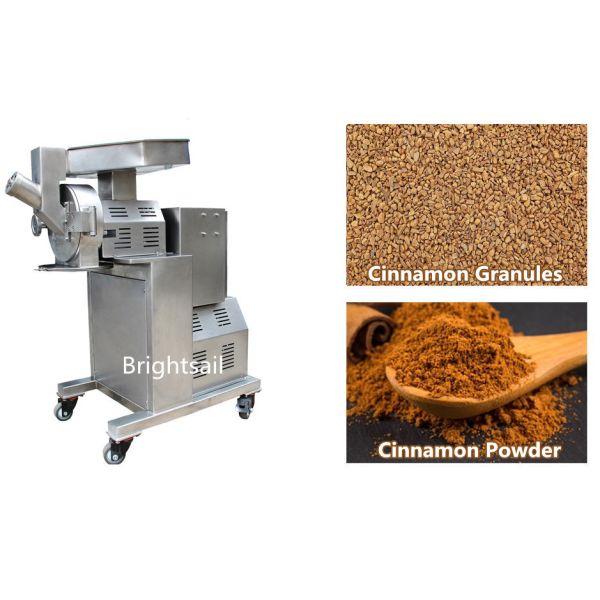

Detailed image:
